- Revo 2 Touch hands Two BrainCo Revo 2 Touch five-finger hands each carry a multi-dimensional fingertip tactile module.
- 11 DOF per hand, 38 in all Each hand has 11 DOF with 6 active, adding 12 active joints to the R1's 26.
- Grip figures BrainCo gives each 383 g hand a full-fist grip of at least 50 N, a pinch of at least 15 N, a payload of at least 20 kg and 0.1° repeatability.
- 100 TOPS Jetson Orin backpack The development computer is an NVIDIA Jetson Orin module rated at 100 TOPS, and the backpack's expansion module connects both hands.
- Open for development Unitree's unitree_sdk2 in C++ and Python on DDS, compatible with ROS 2, plus URDF, STEP and MuJoCo models of the R1.
- Touch on five fingers The Pro D is the R1 EDU's five-finger configuration with touch; the Pro C has the same hands without the tactile module.
- 12-month manufacturer warranty Every R1 EDU carries Unitree's 12-month warranty.
Description
The Unitree R1 EDU Pro D (U6) brings touch to five fingers. Its two BrainCo Revo 2 Touch hands each carry a multi-dimensional fingertip tactile module, the five-finger counterpart of the Pro B's touch-sensing Dex3-1 hands, on the same 100 TOPS backpack and with full secondary development.
Each Revo 2 Touch has five fingers with 11 degrees of freedom, 6 of them active, so the robot has 38 in all. BrainCo gives every Revo 2 a 383 g weight, 160 mm from palm base to middle fingertip, a full-fist grip of at least 50 N, a pinch of at least 15 N, a payload of at least 20 kg and 0.1° repeatability. Both hands connect to XT30 power, a signal port and a camera port on the backpack's dexterous-hand expansion module.
Under the hands sits the R1 EDU: 26 joints, about 1.23 m and 29 kg, a binocular depth camera, unitree_sdk2 in C++ and Python on DDS with ROS 2 compatibility, and URDF, STEP and MuJoCo models. The Pro D is the configuration for research into touch and fine grasping with a human-like hand.
The R1 EDU Pro C (U5) has the same five-finger Revo 2 hands without the tactile module. The R1 EDU Pro B (U4) combines touch sensing with three-finger Unitree Dex3-1 hands (40 DOF in all), and the R1 EDU Smart (U2) is the 100 TOPS robot without hands.
Key Capabilities
- Touch sensing: Multi-dimensional fingertip tactile module on each Revo 2 Touch hand.
- Hands: Two BrainCo Revo 2 Touch five-finger hands, 11 DOF (6 active) each; 38 DOF in all.
- Grip: Full fist at least 50 N, pinch at least 15 N, payload at least 20 kg, 0.1° repeatability; 383 g per hand.
- Computing backpack: NVIDIA Jetson Orin, 100 TOPS, with the dexterous-hand expansion module.
- Secondary development: unitree_sdk2 (C++, Python), DDS, ROS 2; URDF, STEP and MuJoCo models.
- Body: 1.23 m, 29 kg, binocular depth camera, 6000 mAh battery; 12-month warranty.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Official Product Videos
Features
Specs
| Brand | Unitree Robotics |
|---|---|
| Model | R1 EDU Pro D (U6); Unitree name: R1 EDU |
| Robot type | Bipedal humanoid robot |
| Size, standing | 1230 × 357 × 190 mm (height × width × thickness) |
| Size, folded | 690 × 450 × 300 mm |
| Weight | About 29 kg with battery |
| Colours | White or red; creative stickers to change the look |

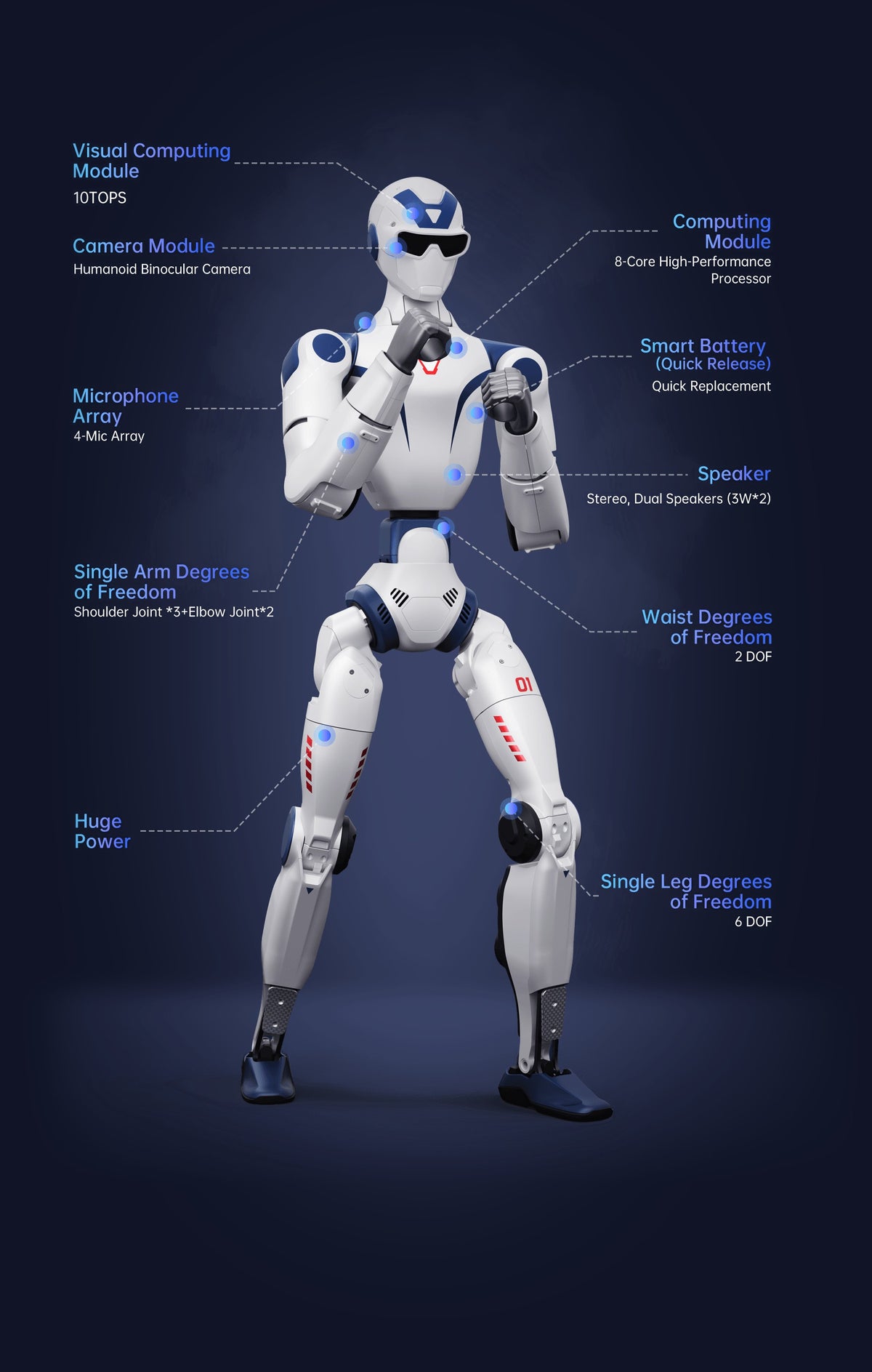

| Body joints | 26 joint motors: 6 per leg, 5 per arm, 2 in the waist, 2 in the head |
| Total degrees of freedom | 38 (26 body joints + 12 active hand joints) |
| Leg and arm length | Calf + thigh 600 mm; forearm + upper arm 420 mm |
| Range of motion | Knee −10° to +139°; hip yaw ±157°, pitch −168° to +146°, roll −60° to +100°; waist yaw ±150°, roll ±30°; head yaw ±115°, pitch ±36° |
| Arm payload | About 2 kg per arm, varies greatly with arm posture |
| Drive | Low-inertia, high-speed inner-rotor PMSM joint motors; crossed roller and ball bearings; dual + single encoders; hollow internal wiring; local air cooling |
| Dexterous hands | 2 × BrainCo Revo 2 Touch |
| Hand type | Five-finger, 11 DOF (6 active) per hand |
| Hand size and weight | 383 g; 160 mm from the palm base to the middle fingertip |
| Grip | Full-fist grip at least 50 N, pinch at least 15 N, payload at least 20 kg; 0.1° repeatability |
| Touch sensing | Multi-dimensional fingertip tactile module (Revo 2 Touch) |
| Hand connections | Each hand connects to XT30 power, a signal port and a camera port on the backpack's dexterous-hand expansion module |
| Camera | Binocular depth camera in the head, 146° × 124° field of view; RGB 1280 × 720 at 30 Hz, depth 544 × 448 at 10 Hz |
| Computing | 8-core high-performance CPU + 10 TOPS visual computing module |
| Computing backpack | NVIDIA Jetson Orin, 100 TOPS (development computing unit) |
| Audio | 4-microphone array; stereo speakers, 3 W × 2 |
| Voice and image AI | Voice and image interaction through a large multimodal model when online; wake phrase "Hello Robot" or press-to-talk |
| Status light | 256-colour RGB chest light showing the robot's state |
| Wireless | Wi-Fi 6, Bluetooth 5.2 |
| Top panel | XT30 power outputs 24 V / 3 A and 36 V / 5 A; RJ45 gigabit Ethernet; stand-up / lie-down button |
| Battery | Quick-release smart battery, 6000 mAh |
| Run time | About 1 h per battery (less with fast walking, load or uneven ground) |
| Charger | 100–240 V input; 38 V, 3 A, 114 W output; about 1.5 h per charge, battery charged outside the robot |
| Remote control | Hard emergency-stop button and soft stop (L2 + B); 780 mAh, about 5 h; more than 100 m in an open environment |
| Control and updates | Unitree Explore app (iOS, Android), remote control and voice; smart OTA upgrades |

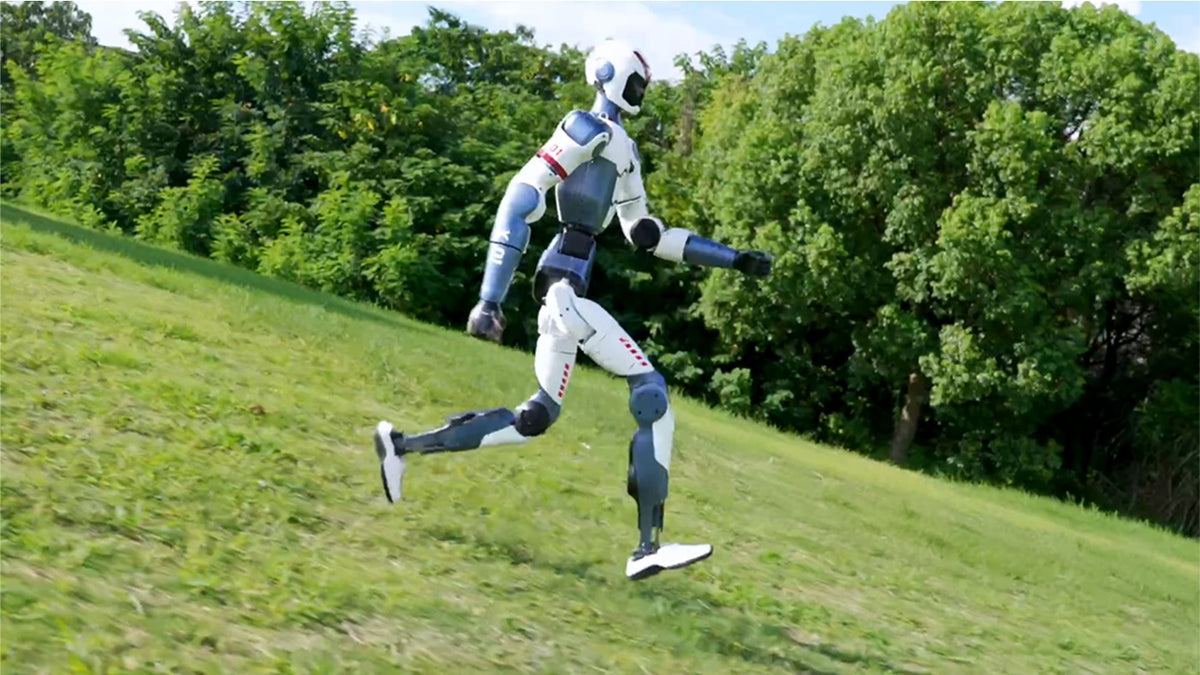

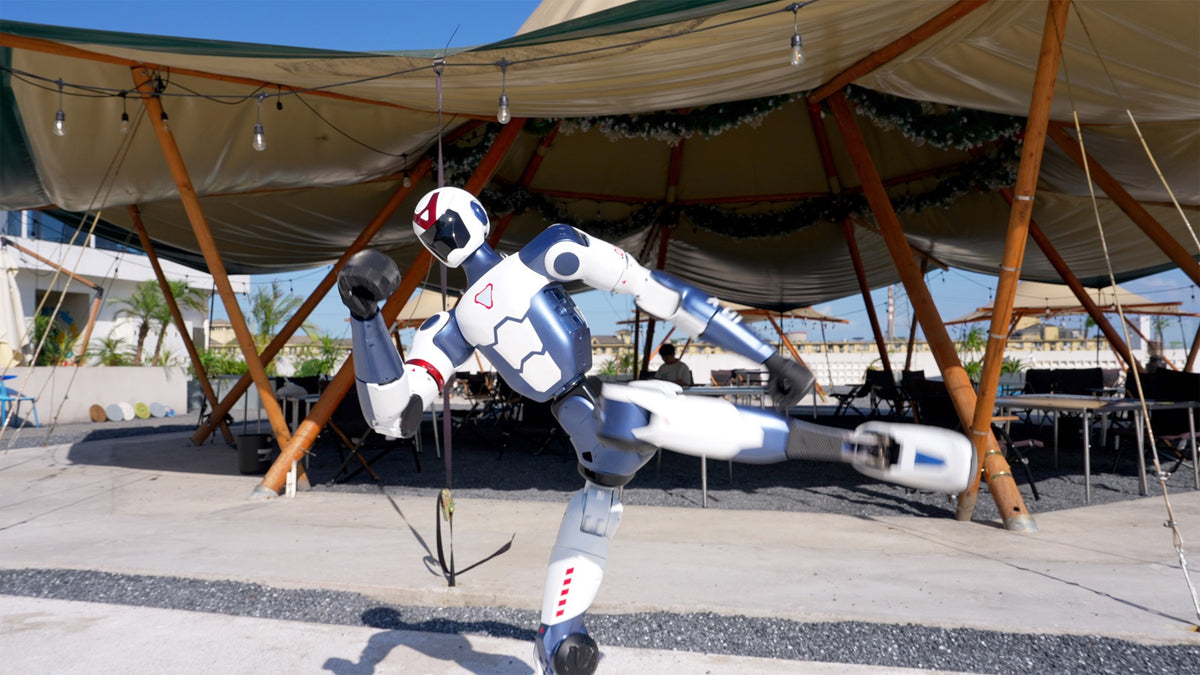

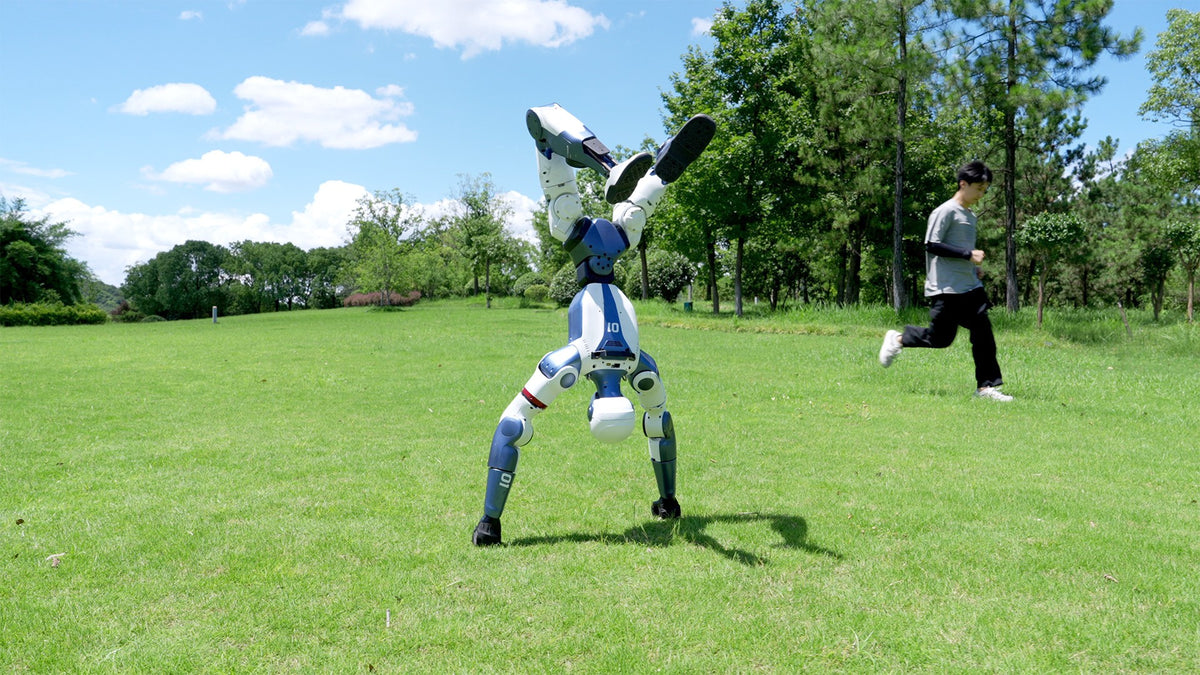

| Built-in actions | Running mode (low or high speed); dance modes including Kung Fu, Jeet Kune Do and Twist; gestures such as handshake, wave and clap |
| Secondary development | unitree_sdk2 in C++ and Python on DDS; compatible with ROS 2 (Foxy, Humble); high-level and joint-level control |
| Simulation models | URDF, STEP and MuJoCo models of the R1 |
| Navigation | Optional LiDAR for Unitree's SLAM and navigation service (static, flat indoor spaces under 45 m) |
| Operating environment | 0–40 °C on flat ground; not waterproof, not dustproof |
| Warranty | 12 months |
| In the box | The robot in a hard transport case, a quick-release R1 smart battery, the charger and charging cable, a remote control with emergency stop, a stand set (base, support rod, bracket, quick-release clamp, wave washer and protective foam), a calibration steel shaft, body stickers and the user manual; as an R1 EDU, the computing backpack with its NVIDIA Jetson Orin module (100 TOPS), expansion rails, screws, the dexterous-hand expansion module and its leads; two BrainCo Revo 2 Touch hands with fixing brackets, camera brackets and cables. Full packing list confirmed with your quotation |
Industries
Product Brochure
Unitree Robotics R1 EDU Pro D (U6) – Product Brochure
The Robotix Market brochure with every capability and the full technical specification — to save, print or forward.
Download Brochure (PDF)Frequently Asked Questions
The Unitree Robotics R1 EDU Pro D (U6) is priced at Rs. 3,052,600 in your market. For volume or project orders, contact us for a business quote.
The fingertips. Both carry two BrainCo Revo 2 five-finger hands (11 DOF, 6 active, each; 38 DOF in all) on the 100 TOPS backpack. The Pro D's are the Revo 2 Touch, with a multi-dimensional fingertip tactile module; the R1 EDU Pro C (U5) has them without it.
A multi-dimensional fingertip tactile module on each hand, on top of what every Revo 2 offers: five fingers with 11 DOF (6 active), 383 g, a full-fist grip of at least 50 N, a pinch of at least 15 N, a payload of at least 20 kg and 0.1° repeatability.

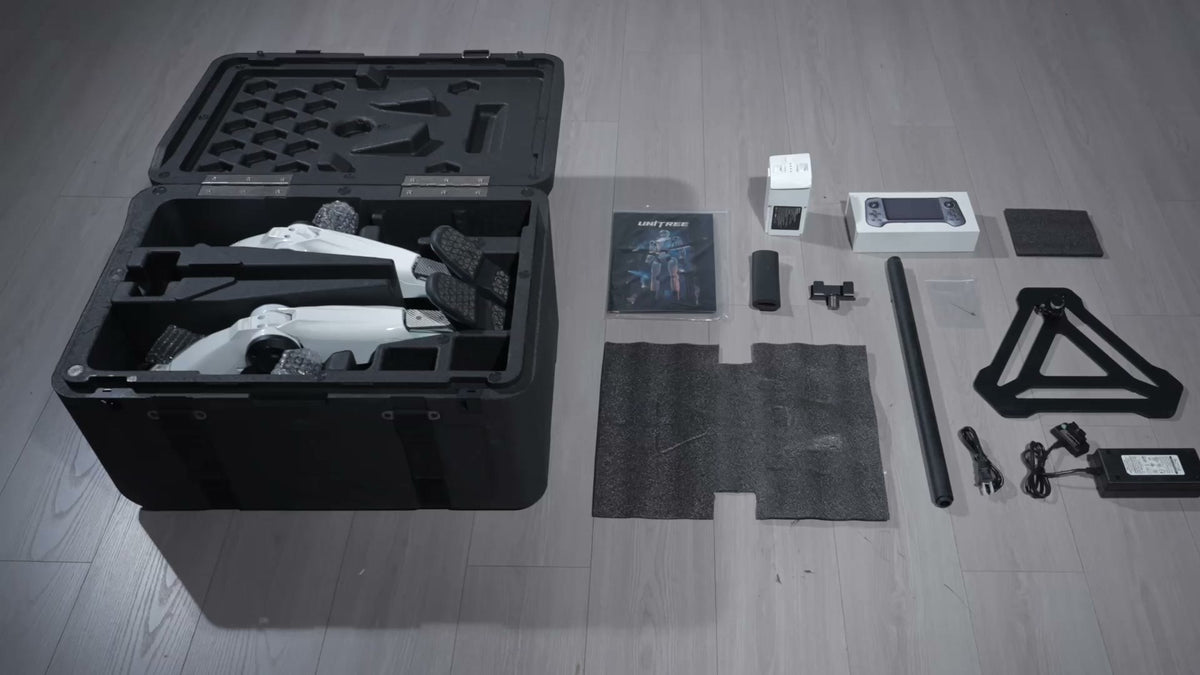

Unitree's R1 unboxing film shows the robot in a hard transport case, a quick-release R1 smart battery, the charger and charging cable, a remote control with emergency stop, a stand set (base, support rod, bracket, quick-release clamp, wave washer and protective foam), a calibration steel shaft, body stickers and the user manual. As an R1 EDU it adds the computing backpack with its NVIDIA Jetson Orin module (100 TOPS), expansion rails, screws, the dexterous-hand expansion module and its leads. The Pro D (U6) also comes with its two BrainCo Revo 2 Touch hands, their fixing brackets, camera brackets and cables. Unitree publishes no written packing list per edition, so we confirm the full list for your configuration with your quotation.
Unitree does not recommend it. During development, avoid violent movements such as running or balance tests while the dexterous hands are fitted, and increase the shoulder motors' outward offset so the hands do not collide with the body.
Unitree's unitree_sdk2 in C++ and Python on DDS, compatible with ROS 2, with high-level and joint-level control, on the backpack's 100 TOPS development computing unit. Unitree provides URDF, STEP and MuJoCo models of the R1 for simulation.
Like every R1 EDU, the R1 EDU Pro D (U6) carries Unitree's 12-month manufacturer warranty (the R1 Basic: 8 months). It is sourced new through established distribution channels and ships worldwide, and technical support is coordinated with the manufacturer's service network. Unitree's R1 developer guide covers the SDK, the computing backpack and fitting the hands.
