- Two BrainCo Revo 2 hands Bionic five-finger hands with 11 DOF each, 6 of them active, replace the R1's fixed hands.
- 38 degrees of freedom The 26 body joints and 12 active hand joints give the Pro C 38 DOF in all.
- Strong, light grip Each 383 g hand grips with at least 50 N in a full fist and 15 N in a pinch, carries at least 20 kg and repeats to 0.1°.
- 100 TOPS Jetson Orin backpack An NVIDIA Jetson Orin module rated at 100 TOPS runs your programs, and the backpack's expansion module powers and connects both hands.
- Open for development Unitree's unitree_sdk2 in C++ and Python on DDS, compatible with ROS 2, plus URDF, STEP and MuJoCo models of the R1.
- Without the tactile module The Pro C's Revo 2 hands have no fingertip tactile module; the Pro D uses the Revo 2 Touch with one.
- 12-month manufacturer warranty Every R1 EDU carries Unitree's 12-month warranty.
Description
The Unitree R1 EDU Pro C (U5) is the R1 EDU with five-finger hands: two BrainCo Revo 2 bionic hands, each with 11 degrees of freedom of which 6 are active, giving the robot 38 in all. Computing comes from the R1 EDU backpack's 100 TOPS NVIDIA Jetson Orin module.
BrainCo's figures for the Revo 2: 383 g per hand and 160 mm from the palm base to the middle fingertip, a full-fist grip of at least 50 N, a pinch of at least 15 N, a payload of at least 20 kg and 0.1° repeatability. Each hand connects to XT30 power, a signal port and a camera port on the backpack's dexterous-hand expansion module, and Unitree publishes a fitting film for the Revo 2 on the R1 EDU.
Beneath the hands is the R1 EDU: 26 joints, about 1.23 m and 29 kg, a binocular depth camera and unitree_sdk2 in C++ and Python on DDS with ROS 2 compatibility. Five fingers suit grasping research that needs a human-like hand shape; the Pro C's hands come without the fingertip tactile module.
The R1 EDU Pro D (U6) uses the Revo 2 Touch with that tactile module. Pro A and Pro B carry three-finger Unitree Dex3-1 hands (40 DOF in all), and the R1 EDU Smart (U2) is the 100 TOPS robot without hands.
Key Capabilities
- Hands: Two BrainCo Revo 2 five-finger hands, 11 DOF (6 active) each, without the tactile module.
- Degrees of freedom: 38 in all: 26 body joints + 12 active hand joints.
- Grip: Full fist at least 50 N, pinch at least 15 N, payload at least 20 kg, 0.1° repeatability; 383 g per hand.
- Computing backpack: NVIDIA Jetson Orin, 100 TOPS, with the dexterous-hand expansion module.
- Secondary development: unitree_sdk2 (C++, Python), DDS, ROS 2; URDF, STEP and MuJoCo models.
- Body: 1.23 m, 29 kg, binocular depth camera, 6000 mAh battery; 12-month warranty.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Official Product Videos
Features
Specs
| Brand | Unitree Robotics |
|---|---|
| Model | R1 EDU Pro C (U5); Unitree name: R1 EDU |
| Robot type | Bipedal humanoid robot |
| Size, standing | 1230 × 357 × 190 mm (height × width × thickness) |
| Size, folded | 690 × 450 × 300 mm |
| Weight | About 29 kg with battery |
| Colours | White or red; creative stickers to change the look |

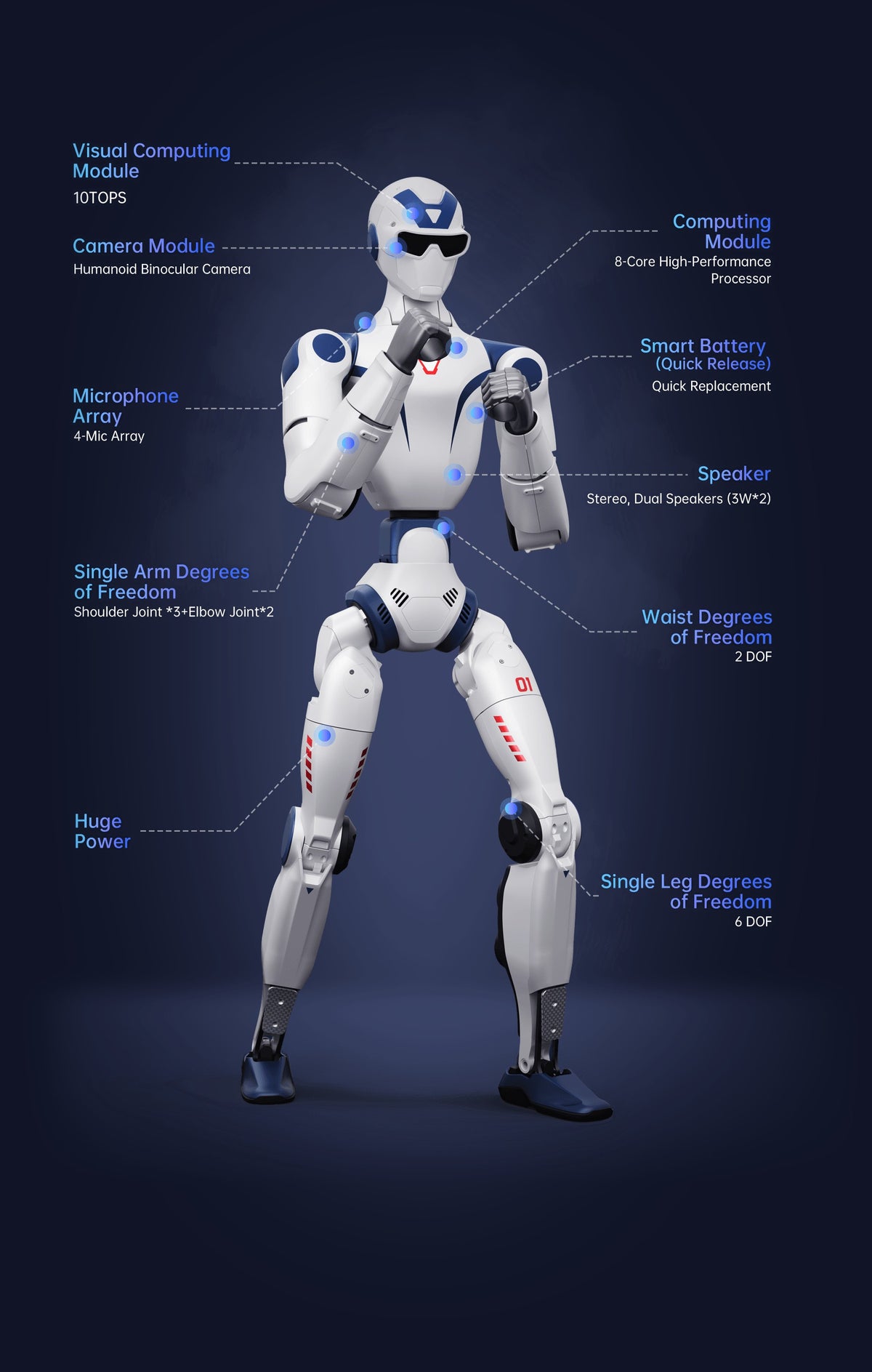

| Body joints | 26 joint motors: 6 per leg, 5 per arm, 2 in the waist, 2 in the head |
| Total degrees of freedom | 38 (26 body joints + 12 active hand joints) |
| Leg and arm length | Calf + thigh 600 mm; forearm + upper arm 420 mm |
| Range of motion | Knee −10° to +139°; hip yaw ±157°, pitch −168° to +146°, roll −60° to +100°; waist yaw ±150°, roll ±30°; head yaw ±115°, pitch ±36° |
| Arm payload | About 2 kg per arm, varies greatly with arm posture |
| Drive | Low-inertia, high-speed inner-rotor PMSM joint motors; crossed roller and ball bearings; dual + single encoders; hollow internal wiring; local air cooling |
| Dexterous hands | 2 × BrainCo Revo 2 |
| Hand type | Five-finger, 11 DOF (6 active) per hand |
| Hand size and weight | 383 g; 160 mm from the palm base to the middle fingertip |
| Grip | Full-fist grip at least 50 N, pinch at least 15 N, payload at least 20 kg; 0.1° repeatability |
| Touch sensing | Not included (the Pro D's Revo 2 Touch hands carry a fingertip tactile module) |
| Hand connections | Each hand connects to XT30 power, a signal port and a camera port on the backpack's dexterous-hand expansion module |
| Camera | Binocular depth camera in the head, 146° × 124° field of view; RGB 1280 × 720 at 30 Hz, depth 544 × 448 at 10 Hz |
| Computing | 8-core high-performance CPU + 10 TOPS visual computing module |
| Computing backpack | NVIDIA Jetson Orin, 100 TOPS (development computing unit) |
| Audio | 4-microphone array; stereo speakers, 3 W × 2 |
| Voice and image AI | Voice and image interaction through a large multimodal model when online; wake phrase "Hello Robot" or press-to-talk |
| Status light | 256-colour RGB chest light showing the robot's state |
| Wireless | Wi-Fi 6, Bluetooth 5.2 |
| Top panel | XT30 power outputs 24 V / 3 A and 36 V / 5 A; RJ45 gigabit Ethernet; stand-up / lie-down button |
| Battery | Quick-release smart battery, 6000 mAh |
| Run time | About 1 h per battery (less with fast walking, load or uneven ground) |
| Charger | 100–240 V input; 38 V, 3 A, 114 W output; about 1.5 h per charge, battery charged outside the robot |
| Remote control | Hard emergency-stop button and soft stop (L2 + B); 780 mAh, about 5 h; more than 100 m in an open environment |
| Control and updates | Unitree Explore app (iOS, Android), remote control and voice; smart OTA upgrades |

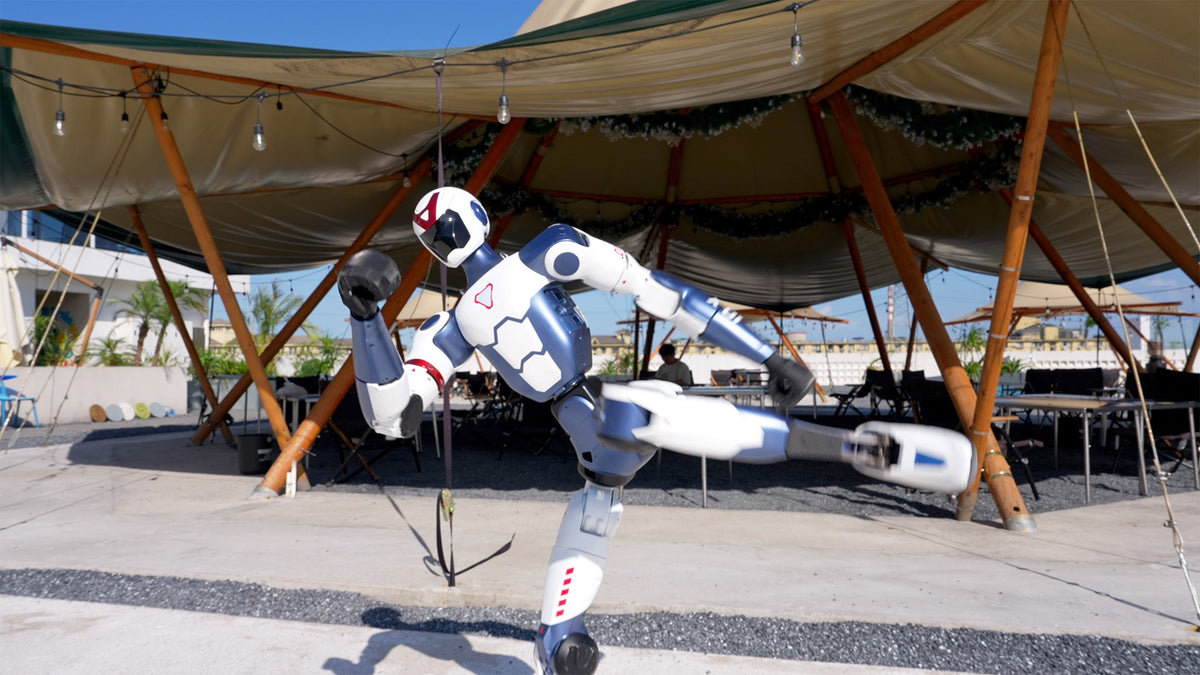

| Built-in actions | Running mode (low or high speed); dance modes including Kung Fu, Jeet Kune Do and Twist; gestures such as handshake, wave and clap |
| Secondary development | unitree_sdk2 in C++ and Python on DDS; compatible with ROS 2 (Foxy, Humble); high-level and joint-level control |
| Simulation models | URDF, STEP and MuJoCo models of the R1 |
| Navigation | Optional LiDAR for Unitree's SLAM and navigation service (static, flat indoor spaces under 45 m) |
| Operating environment | 0–40 °C on flat ground; not waterproof, not dustproof |
| Warranty | 12 months |

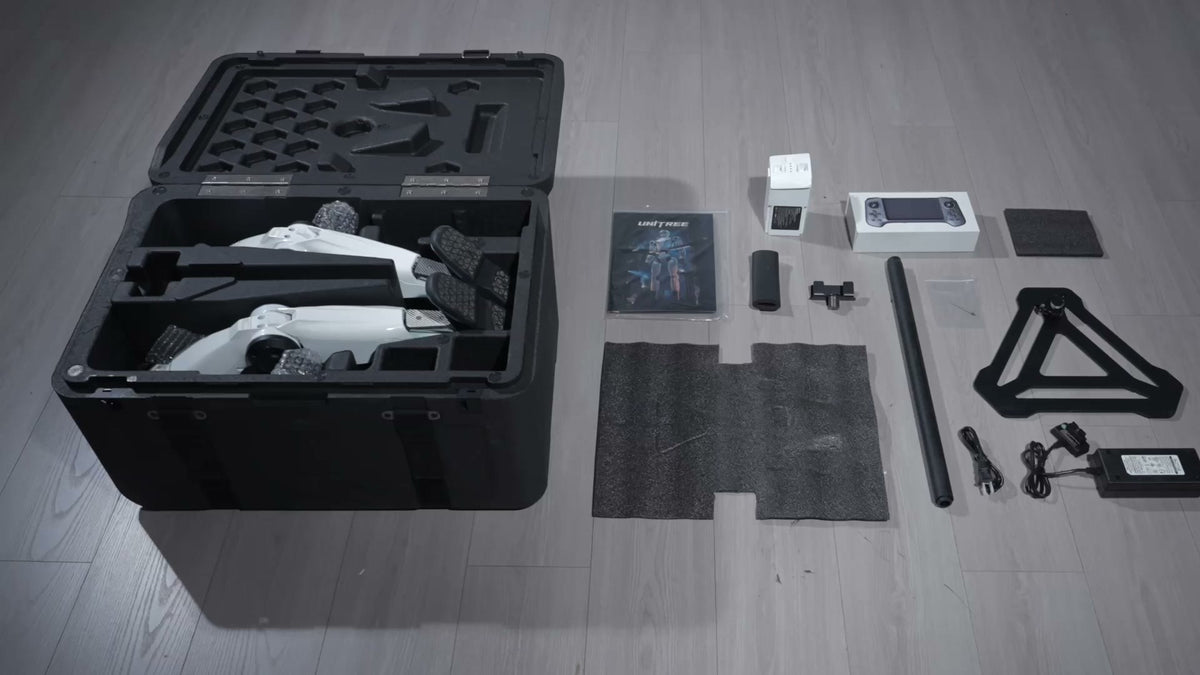

| In the box | The robot in a hard transport case, a quick-release R1 smart battery, the charger and charging cable, a remote control with emergency stop, a stand set (base, support rod, bracket, quick-release clamp, wave washer and protective foam), a calibration steel shaft, body stickers and the user manual; as an R1 EDU, the computing backpack with its NVIDIA Jetson Orin module (100 TOPS), expansion rails, screws, the dexterous-hand expansion module and its leads; two BrainCo Revo 2 hands with fixing brackets, camera brackets and cables. Full packing list confirmed with your quotation |
Industries
Product Brochure
Unitree Robotics R1 EDU Pro C (U5) – Product Brochure
The Robotix Market brochure with every capability and the full technical specification — to save, print or forward.
Download Brochure (PDF)Frequently Asked Questions
The Unitree Robotics R1 EDU Pro C (U5) is priced at Rs. 2,583,900 in your market. For volume or project orders, contact us for a business quote.
The Pro C's BrainCo Revo 2 hands have five fingers with 11 DOF each, 6 of them active, so the robot has 38 DOF; the Unitree Dex3-1 on the R1 EDU Pro A (U3) and R1 EDU Pro B (U4) has three fingers and 7 DOF per hand, 40 in all. The R1 EDU Pro D (U6) is the Pro C with Revo 2 Touch hands, which add a fingertip tactile module. All four run on the 100 TOPS backpack.
BrainCo gives a full-fist grip of at least 50 N, a pinch of at least 15 N, a payload of at least 20 kg and 0.1° repeatability, for a hand of 383 g and 160 mm from the palm base to the middle fingertip.
Unitree's R1 unboxing film shows the robot in a hard transport case, a quick-release R1 smart battery, the charger and charging cable, a remote control with emergency stop, a stand set (base, support rod, bracket, quick-release clamp, wave washer and protective foam), a calibration steel shaft, body stickers and the user manual. As an R1 EDU it adds the computing backpack with its NVIDIA Jetson Orin module (100 TOPS), expansion rails, screws, the dexterous-hand expansion module and its leads. The Pro C (U5) also comes with its two BrainCo Revo 2 hands, their fixing brackets, camera brackets and cables. Unitree publishes no written packing list per edition, so we confirm the full list for your configuration with your quotation.
Unitree does not recommend it. During development, avoid violent movements such as running or balance tests while the dexterous hands are fitted, and increase the shoulder motors' outward offset so the hands do not collide with the body.
Yes. The Pro C supports secondary development like every R1 EDU: unitree_sdk2 in C++ and Python on DDS, compatible with ROS 2, with high-level and joint-level control, on the backpack's 100 TOPS development computing unit, plus URDF, STEP and MuJoCo models of the R1.
Like every R1 EDU, the R1 EDU Pro C (U5) carries Unitree's 12-month manufacturer warranty (the R1 Basic: 8 months). It is sourced new through established distribution channels and ships worldwide, and technical support is coordinated with the manufacturer's service network. Unitree's R1 developer guide covers the SDK, the computing backpack and fitting the hands.
