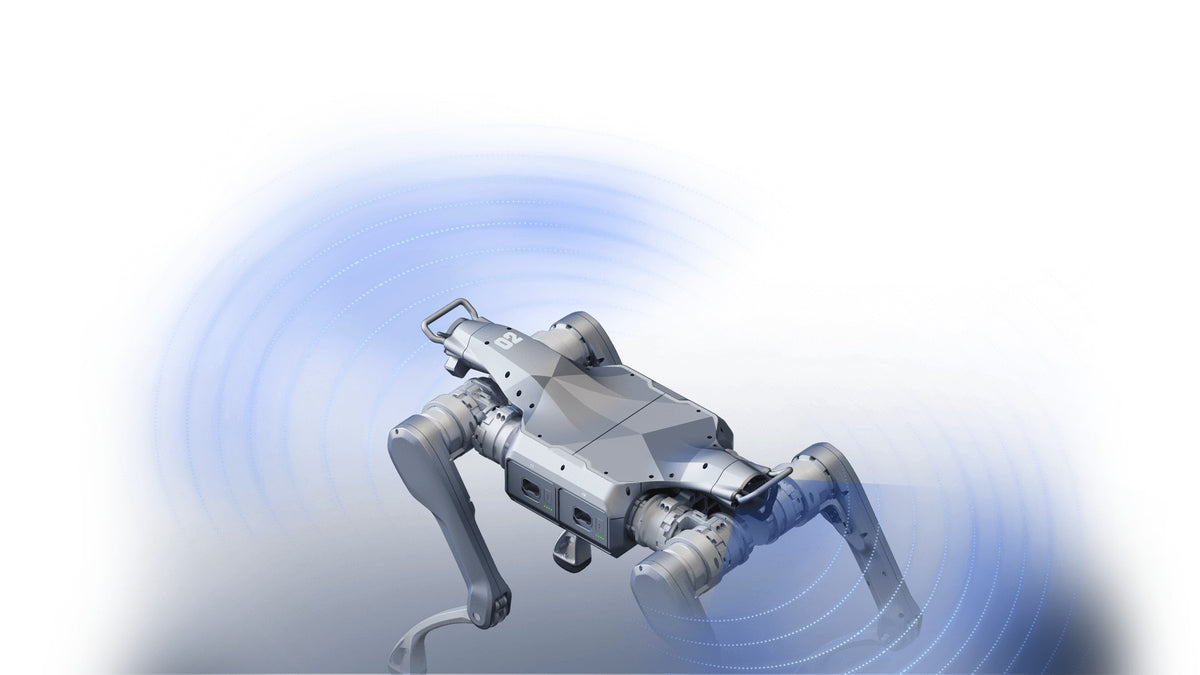

- Two LiDARs, front and rear Hesai JT128 LiDARs in the head and the tail (128 channels, 360° × 189° each) give the A2 Pro front-and-rear perception with no blind spots.
- Computing dock with Jetson Orin NX The expansion dock on the back carries an NVIDIA Jetson Orin NX module rated at 100 TOPS (sparse INT8), next to the 8-core platform CPU and the Intel Core i7.

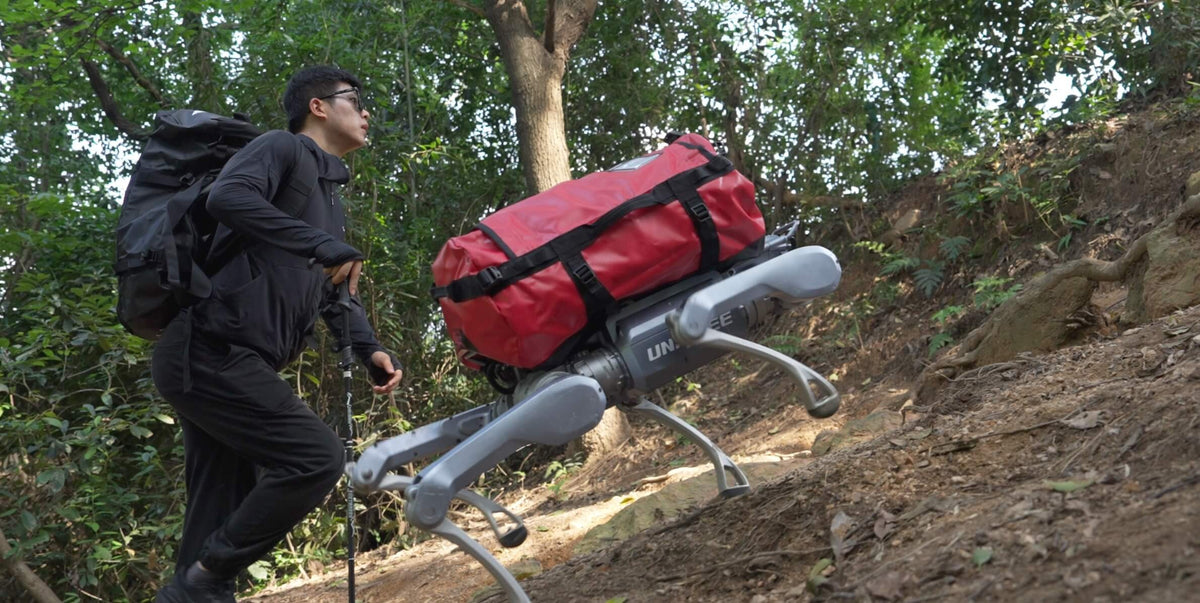

- GNSS, 4G and follow mode Expansion modules add satellite positioning, 4G connectivity and Unitree's wireless follow mode, in which the robot keeps a set distance and heading to the person wearing the companion remote.
- Core components rated IP67 The A2 Pro is rated IP56–IP67, with its core components at IP67, and works from −20 °C to 55 °C.
- Payload and range About 25 kg while walking, about 100 kg standing, and over 5 hours and about 20 km unloaded on two hot-swappable batteries.
- Rugged terrain Twelve joints with about 180 N·m each take it up 30 cm steps, 45° slopes and 0.5–1 m obstacles at 0–3.7 m/s.
- Open for development RS485, CAN, gigabit Ethernet, USB-C and 12 V / 24 V / battery outputs on the body, plus the dock's own interfaces, for payloads and your own software.
Description

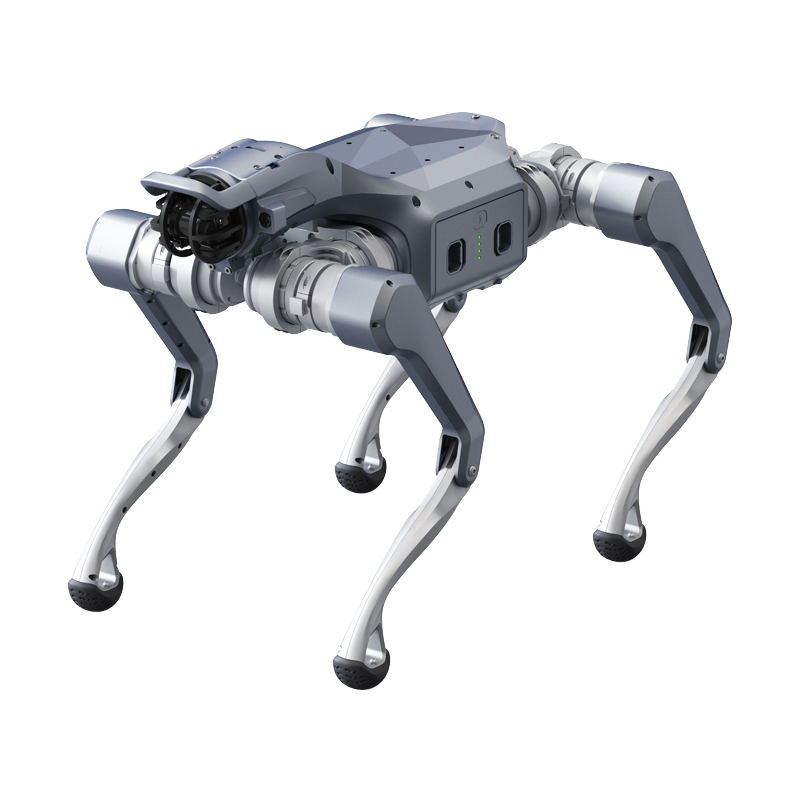

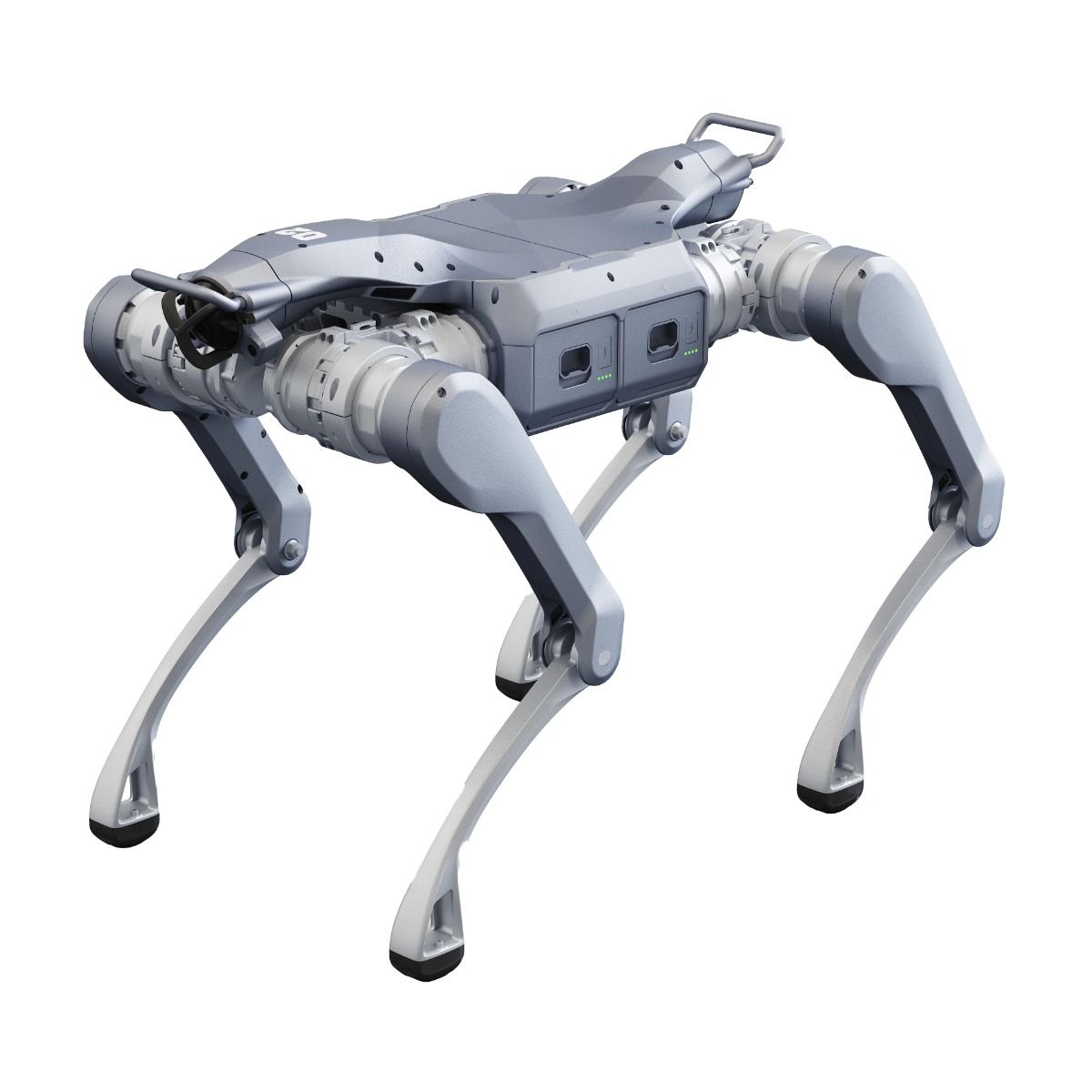

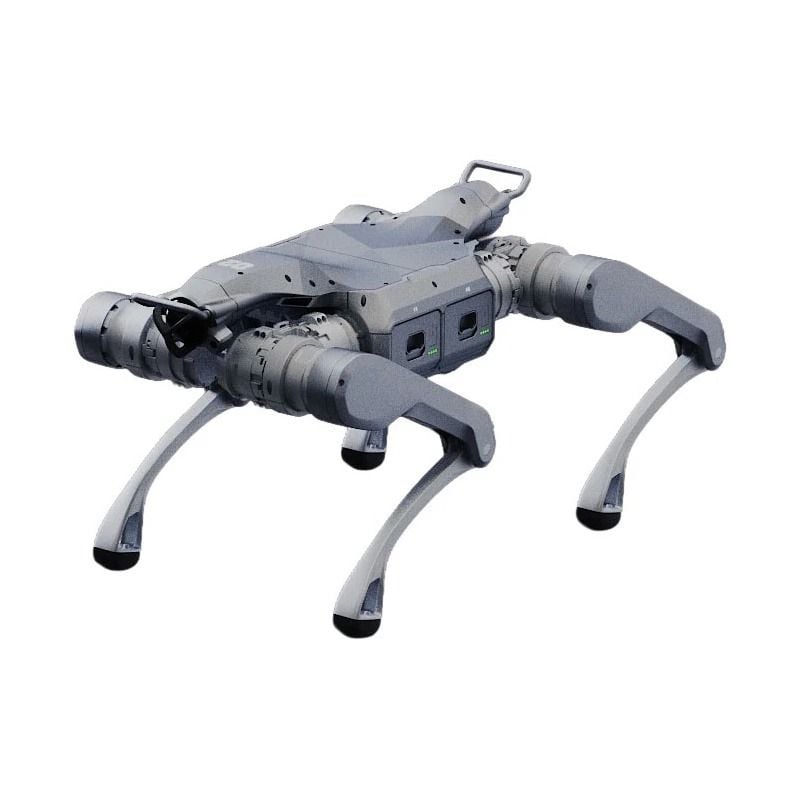

The Unitree A2 Pro is the A2 industrial quadruped in Unitree's industry configuration: two Hesai JT128 LiDARs, one in the head and one in the tail, for front-and-rear perception with no blind spots, and an expansion dock with an NVIDIA Jetson Orin NX module (100 TOPS) on its back.
Expansion modules add GNSS satellite positioning, 4G connectivity and Unitree's wireless follow mode, in which the robot keeps a set distance and heading to the person wearing the companion remote. The A2 Pro is rated IP56–IP67, with its core components at IP67, and works from −20 °C to 55 °C.
Underneath is the full A2 platform: about 42 kg, twelve joints with about 180 N·m, about 25 kg walking load and about 100 kg standing, two hot-swappable batteries for over 5 hours and about 20 km unloaded, and 30 cm steps, 45° slopes and 0.5–1 m climbs. An 8-core platform CPU and an Intel Core i7 user computer support secondary development. Unitree names logistics, industrial inspection and emergency rescue among the A2's scenarios.
Need the A2 without the second LiDAR and the expansion modules? The Unitree A2 Standard has the same body, drive, batteries and computers with one head LiDAR, IP56, and the follow module, GNSS and 4G as options.
Key Capabilities
- Perception: Head and tail Hesai JT128 LiDARs (128 channels, 360° × 189° each), HD camera and front light.
- Computing: NVIDIA Jetson Orin NX expansion dock (100 TOPS) plus the 8-core platform CPU and Intel Core i7.
- Expansion modules: GNSS, 4G and the wireless follow module.
- Protection: IP56–IP67, core components IP67; −20 °C to 55 °C.
- Payload and endurance: About 25 kg walking, about 100 kg standing; over 5 h / about 20 km unloaded.
- Mobility: 30 cm steps, 45° slopes, 0.5–1 m climbs, 0–3.7 m/s.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the full manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Official Product Videos
Features
Specs
| Brand | Unitree Robotics |
|---|---|
| Model | A2 Pro |
| Robot type | Industrial quadruped robot (legged) |
| Size, standing | 820 × 440 × 570 mm |
| Size, lying prone | 720 × 550 × 220 mm |
| Weight | About 42 kg with batteries, about 35 kg without |
| Material | Aluminium alloy (6061-T6 connecting structures, 7075-T6 key parts) and high-strength engineering plastic |
| Degrees of freedom | 12 joint motors |
| Joint motors | Low-inertia, high-speed inner-rotor PMSM with dual encoders |
| Joint bearings | Industrial-grade crossed roller bearings |
| Maximum joint torque | About 180 N·m |
| Range of motion | Body −58° to 58°; thigh −134° to 180° / −89° to 225°; shank −158° to −30° |
| Speed | 0–3.7 m/s in normal operation, up to about 5 m/s in special configurations (limited for safety in practice) |
| Slope | About 45° |
| Step height | Up to 30 cm |
| Climb height | About 0.5–1 m |
| Continuous walking load | About 25 kg (ideally about 35 kg) |
| Maximum standing load | About 100 kg |
| Endurance | Over 5 h / about 20 km unloaded; over 3 h / about 12.5 km with a 25 kg load |

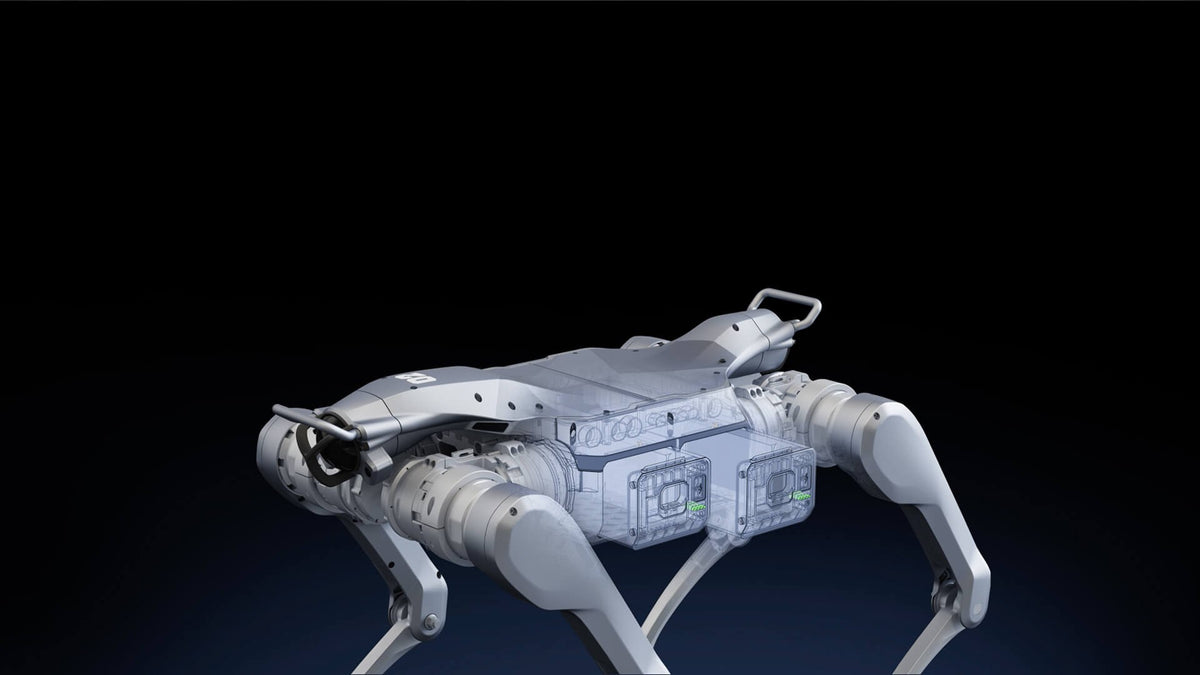

| Power supply | Two hot-swappable smart batteries in dual slots |
| Battery | 9000 mAh, 453.6 Wh each (18000 mAh, 907.2 Wh together); 50.4 V rated, 58.8 V charge limit |
| Charger | 100–240 V input; 58.8 V, 7 A output (411.6 W); about 1 h 50 min per battery |
| Perception | 2 × Hesai JT128 LiDARs (head and tail) + HD camera |
| LiDAR | 128 channels, 360° × 189° field of view, 40 m range at 10 % reflectivity |
| Camera | HD camera, up to 2568 × 1448 px at 15 fps, 153° diagonal field of view |
| Lighting and audio | Front light, 5 W speaker, microphone array |
| Computing | 8-core high-performance CPU (platform functions) + Intel Core i7 (user development) |
| External interfaces | RS485 × 2, CAN × 2, gigabit Ethernet × 2, USB Type-C × 4, power output 12 V / 24 V / battery |
| Connectivity | Wi-Fi 6, Bluetooth 5.2 |
| High-computing expansion dock | NVIDIA Jetson Orin NX, 100 TOPS (sparse INT8), 16 GB LPDDR5; configuration confirmed with your quotation |
| Wireless vector follow module | Yes, expansion module; confirmed with your quotation |
| GNSS (GPS) | Yes, expansion module (GPS, BDS, QZSS; 2.0 m horizontal accuracy); confirmed with your quotation |
| 4G | Yes, expansion module; confirmed with your quotation |
| Ingress protection | IP56–IP67 (core components IP67) |
| Operating temperature | −20 °C to 55 °C |
| Software | Smart OTA upgrades; secondary development supported (SDK) |
| Remote control | R3 joystick remote with emergency stop: over 100 m in an open environment, about 5 h per charge |
| Warranty | 12 months |
| In the box | Two smart batteries, remote controller with emergency stop, battery charger, Allen wrench, four replacement foot pads, data cable, user manual and warranty card, hard transport case; plus the A2 Pro's expansion modules — full packing list confirmed with your quotation |
Industries
Product Brochure
Unitree Robotics A2 Pro Quadruped Robot Dog – Product Brochure
The Robotix Market brochure with every capability and the full technical specification — to save, print or forward.
Download Brochure (PDF)Frequently Asked Questions
The Unitree Robotics A2 Pro Quadruped Robot Dog is priced at Rs. 3,803,500 in your market. For volume or project orders, contact us for a business quote.
Both share the body, drive, batteries and computers. The A2 Pro adds a second LiDAR in the tail, an NVIDIA Jetson Orin NX computing dock (100 TOPS), GNSS, 4G and the wireless follow module, and its core components are rated IP67. The Unitree A2 Standard has the head LiDAR only, IP56, and the follow module, GNSS and 4G as options.
Unitree's A2 unboxing guide shows the base kit: two smart batteries, remote controller with emergency stop, battery charger, Allen wrench, four replacement foot pads, data cable, user manual and warranty card, hard transport case. The A2 Pro adds its expansion modules; we confirm the full packing list with your quotation.
The dock mounts on the guide rail on the robot's back. It carries an NVIDIA Jetson Orin NX module (100 TOPS sparse INT8, 16 GB LPDDR5) for on-board AI and the 4G module, with its own 2.5G Ethernet, USB-C and power ports; the GNSS module, the antenna box and an emergency-stop button mount on it. The exact configuration is confirmed with your quotation.
Unitree rates the A2 Pro IP56–IP67, with the core components at IP67, for operation from −20 °C to 55 °C. Keep the battery contacts dry when inserting a pack.
With two 9000 mAh, 453.6 Wh smart batteries it walks for over 5 hours and about 20 km unloaded, or over 3 hours and about 12.5 km with a 25 kg load. The batteries are hot-swappable, and each charges in about 1 hour 50 minutes.
Yes. Robotix Market ships worldwide; delivery, import duties and the delivery estimate to your address are confirmed with your quotation.
