- 10 kg payload with 1152 mm reach Six-axis desktop-class robot covering a 1152 mm working radius, suited to handling, welding, assembly, loading and unloading, inspection, and grinding and polishing.
- ±0.03 mm repeatability Newly developed proprietary core components and algorithms fully exploit the mechanical performance limits for high-precision positioning.
- IP67-rated wrist High protection at the wrist lets the robot work reliably in demanding production environments.
- Air lines and signal cables as standard The robot body includes multiple air passages and signal lines to support diverse end-effector and gripper requirements without external dress packs.
- Broad fieldbus compatibility Supports TCP/IP, Modbus TCP, EIP, and Profinet protocols for straightforward integration with plant control systems.
- Modular, easy-to-maintain design A compact, modular structure accommodates a wider range of application scenarios while reducing maintenance costs.
Description

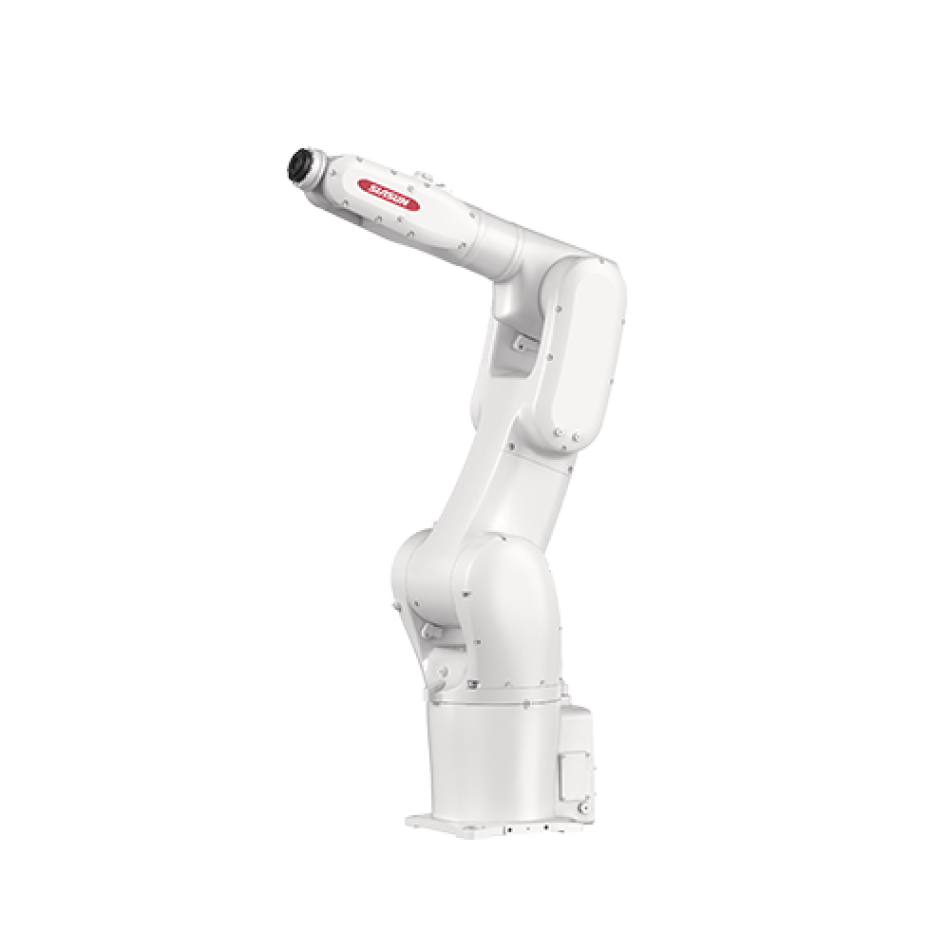

The SIASUN SN10A-10/1.15 belongs to the SN10A series, SIASUN's new generation of desktop-class robots built for high performance, easy maintenance, and a compact structure. This six-axis model pairs a 10 kg payload with a 1152 mm reach, and its brand-new independently developed core components and algorithms fully exploit the mechanics to achieve high precision, high protection, high speed, and high rigidity — with positioning repeatability reaching ±0.03 mm and an IP67-rated wrist. The modular design accommodates a wider range of application scenarios while reducing maintenance costs.
Application areas span handling, welding, assembly, loading and unloading, inspection, and grinding and polishing, allowing the SN10A-10/1.15 to take on complex production tasks across a compact footprint. The robot body comes standard with multiple air lines, and its signal cables are designed to meet diverse user needs for end effectors and grippers, while compatibility with TCP/IP, Modbus TCP, EIP, and Profinet fieldbus protocols simplifies integration into existing plant networks. The SN10A-10/1.15 is supplied on a quotation basis, with configuration confirmed to your project requirements.
Features
Specs
| Brand | SIASUN |
|---|---|
| Model | SN10A-10/1.15 |
| Type | Six-axis desktop robot |
| Payload | 10 kg |
| Reach | 1152 mm |
| Degrees of Freedom | 6 |
| Repeatability | ±0.03 mm |
| Protection Rating (Wrist) | IP67 |
| Fieldbus Compatibility | TCP/IP, Modbus TCP, EIP, Profinet |
| End-Effector Support | Multiple air lines and signal cables as standard |
Industries
Frequently Asked Questions
It is a six-axis robot from SIASUN's new-generation SN10A desktop series, rated for a 10 kg payload with a 1152 mm reach. Brand-new independently developed core components and algorithms give it high precision, high protection, high speed, and high rigidity, with repeatability reaching ±0.03 mm and an IP67-rated wrist.
Its application areas cover handling, welding, assembly, loading and unloading, inspection, and grinding and polishing, making it a versatile compact platform for complex production scenarios.
The robot body comes standard with multiple air lines and signal cables designed for diverse end effectors and grippers, and it is compatible with TCP/IP, Modbus TCP, EIP, and Profinet fieldbus protocols for connection to plant control systems.
Robotix Market also lists SIASUN's V-Series industrial robots. The SN10A-10/1.15 is the compact, desktop-class six-axis option with a 10 kg payload, 1152 mm reach, and IP67-rated wrist; if you are unsure which SIASUN platform suits your cell, our team can advise based on your payload, reach, and application requirements.
It is available through Robotix Market on a request-for-quote basis: contact our team with your requirements and we will confirm pricing, configuration, and availability. The robot is covered by the manufacturer's warranty from SIASUN, and we ship worldwide.
SIASUN SN10A-10/1.15 Compact Six-Axis Robot
