- 100 kg continuous payload Continuous walking payload of 100 kg and maximum standing load of 170 kg accommodate heavy sensor towers and mission-critical equipment.
- 3,540 Wh dual-battery system Dual 60 Ah batteries at 59 V deliver 3.5–5 hours of runtime for extended inspection and patrol missions.
- 80 cm stair climbing Navigates stairs up to 80 cm high and slopes ≥30°, enabling access to infrastructure unreachable by wheeled platforms.
- Dual-compute architecture ARM 8-core + x86 4-core/8-thread processors with up to 16 GB RAM provide edge compute for simultaneous sensing, mapping, and decision-making.
- IP66 weatherproof build Fully sealed against dust and water ingress, rated for continuous operation from -20°C to +55°C.
- Wi-Fi 6 + multi-bus connectivity Ethernet, USB 3.0, RS485, and Wi-Fi 6 interfaces support diverse payload integration and reliable remote teleoperation.
Description

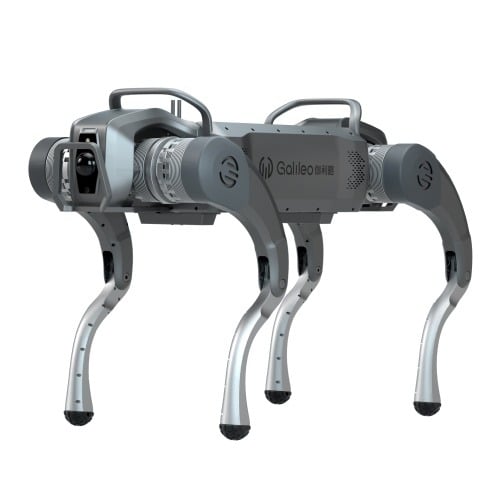

The Galileo S1 is a large-frame industrial quadruped robot from GalileoTime, engineered for demanding field deployments across inspection, logistics, security, and emergency response. At 118 kg with a continuous payload capacity of 100 kg and a maximum standing load of 170 kg, it operates in a different weight class to lighter research quadrupeds, bringing the load-bearing capability needed for real-world sensor towers, equipment, and mission payloads. A dual-battery configuration delivering 3,540 Wh at 59 V supports runtime of 3.5 to 5 hours at speeds up to 3.5 m/s, while the IP66 rating and -20°C to +55°C temperature range ensure sustained outdoor operation across varied climates.
Mobility specifications are similarly industrial in scope: the S1 navigates slopes of 30° or greater and climbs stairs up to 80 cm high, enabling access to infrastructure that wheeled platforms cannot reach. Onboard computing combines an ARM 8-core processor with 8 GB RAM and 64 GB storage alongside an x86 4-core/8-thread module with 16 GB RAM and 256 GB storage, providing the edge compute capacity for simultaneous sensing, mapping, and real-time decision-making. Connectivity via Ethernet, USB 3.0, RS485, and Wi-Fi 6 supports payload integration and remote operation in the field.
Features
Specs
| Brand | Galileo (GalileoTime) |
|---|---|
| Model | S1 |
| Dimensions (L×W×H) | 1200 × 550 × 650 mm |
| Weight | 118 kg |
| Continuous Walking Load | 100 kg |
| Maximum Standing Load | 170 kg |
| Battery Capacity | 60 Ah / 3,540 Wh (dual batteries) |
| Battery Voltage | 59 V |
| Movement Speed | 0–3.5 m/s (adjustable) |
| Runtime | 3.5–5 hours |
| Slope Capability | ≥30° |
| Stair Climbing Height | 80 cm |
| Computing Power | ARM 8C/8T 8 GB/64 GB + x86 4C/8T 16 GB/256 GB |
| Connectivity | Ethernet, USB 3.0, RS485, Wi-Fi 6 |
| Ingress Protection | IP66 |
| Operating Temperature | -20°C to +55°C |
Industries
Frequently Asked Questions
The S1 is a large industrial quadruped robot used for field inspection, perimeter security patrol, logistics support, and emergency response in environments where high payload capacity and the ability to navigate stairs and steep slopes are essential.
The S1 carries up to 100 kg continuously and 170 kg while stationary, climbs stairs up to 80 cm, slopes of 30° or more, and operates for 3.5–5 hours on dual batteries. Its dual-processor compute module supports onboard mapping, sensing, and autonomous decision-making.
It is suited to industrial site inspection, oil and gas infrastructure, security and perimeter patrol, logistics operations, and emergency response teams requiring a robust, high-payload mobile robot in the field.
Yes, Robotix Market ships the Galileo S1 worldwide. The product is covered by the manufacturer's warranty as provided by GalileoTime.
Submit a quote request through Robotix Market's website. Our team will confirm configuration options, availability, and shipping logistics to your location.
Galileo S1 Large Industrial Quadruped Robot
