- 14KW 4B4C Charging Ecosystem Four CM13600S smart chargers and four Smart SuperCharge batteries with parallel charging components enable rapid battery rotation to minimize aircraft downtime in high-utilization field operations.
- 70 kg Payload & 30 L/min Flow Rate P150 platform supports 70 kg maximum payload and up to 30 L/min total flow rate from dual flexible impeller pumps, with 5–10 m effective spray width for broad-acre coverage.
- Modular Spray & Spread Capability Compatible with RevoSpray rotary atomization system for liquid crop protection and RevoCast spreading module for granular inputs up to 280 kg/min from a 115 L container.
- Variable-Rate Prescription Application XAG's P150 materials reference real-time 3D terrain mapping and variable-rate application workflows, supporting zone-based treatment adjustments for precision agronomy.
- IPX6K Field Durability IPX6K protection rating enables wash-down between missions and operation in harsh field conditions across demanding seasonal application windows.
- 60–500 μm Adjustable Droplet Range High-speed spray discs and centrifugal atomizing nozzles allow droplet size tuning across the full 60–500 μm range to match crop, canopy, and application objectives.
Описание

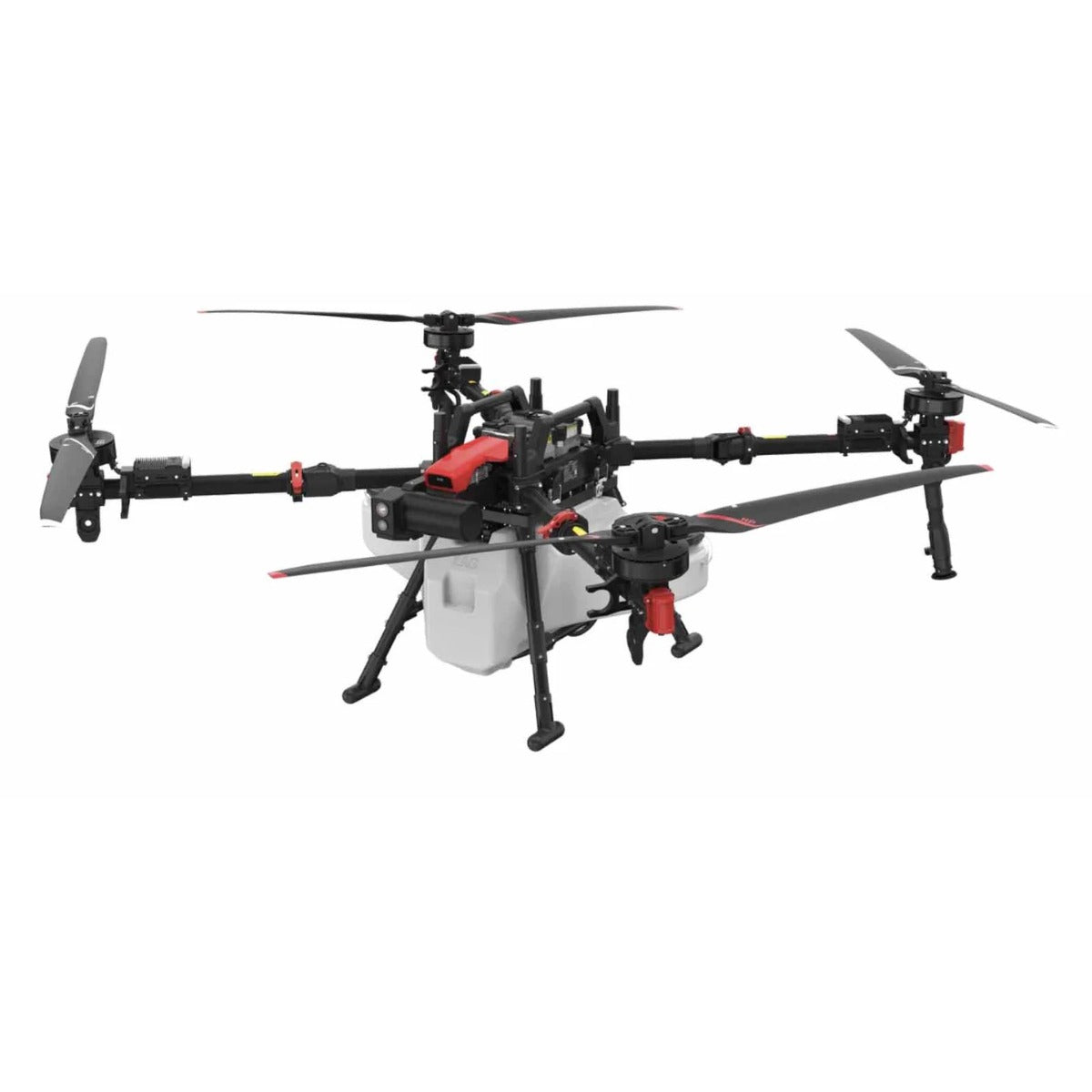

The XAG P150 Standard Agricultural Drone 14KW 4B4C Kit is a professional complete-package solution built around the XAG P150 agricultural drone platform and a high-throughput 14-kilowatt-class charging ecosystem. The 4B4C designation indicates four smart batteries and four CM13600S chargers alongside parallel charging components, enabling rapid battery turnover designed to minimize aircraft downtime during intensive field operations. The P150 platform supports a maximum payload of 70 kg with a 30 L/min maximum spraying flow rate, centrifugal atomizing nozzles with 60–500 μm adjustable droplet range, and a 5–10 m effective spray width, making it a strong candidate for large-area crop protection and precision application workflows.
Beyond liquid spraying, the P150 is designed as a modular multi-mission platform — compatible with granular spreading configurations rated at up to 280 kg/min across a 115 L container — and its field durability is supported by an IPX6K protection rating. The 14KW 4B4C charging structure, including four chargers and parallel charging components, is particularly relevant for high-utilization contractor operations where aircraft uptime and daily field coverage are the primary productivity metrics. XAG markets the P150 with integrated real-time 3D terrain mapping and variable-rate prescription application support, enabling operators to adapt treatments to field-specific agronomic conditions.
Характеристики
Характеристики
| Brand | XAG |
|---|---|
| Model | P150 Standard Agricultural Drone 14KW 4B4C Kit |
| Maximum Payload | 70 kg |
| Max Spraying Flow Rate | Up to 30 L/min |
| Effective Spray Width | 5–10 m |
| Droplet Size Range | 60–500 μm |
| Spreading Container | 115 L |
| Max Spread Rate | 280 kg/min |
| Protection Rating | IPX6K |
| Batteries Included | 4× Smart SuperCharge batteries |
| Chargers Included | 4× CM13600S smart chargers |
| Charging Tier | 14KW parallel charging configuration |
| RTK Component | XRTK7 mobile station (in bundle) |
Отрасли
Часто задаваемые вопросы
It is a complete agricultural drone package for professional crop spraying and spreading operations. The P150 platform supports up to 70 kg payload, 30 L/min spraying flow rate, and granular spreading at up to 280 kg/min — with a 14KW 4B4C power ecosystem providing four batteries and four chargers for high-utilization field campaigns.
The 14KW 4B4C configuration includes four Smart SuperCharge batteries and four CM13600S chargers with parallel charging components, enabling faster battery turnover compared with lower-tier kits. This reduces idle time between sorties and supports higher daily field coverage for contractors and large-scale operators.
The P150 Standard 14KW 4B4C Kit is suited for commercial agriculture contractors and professional farm operations requiring high-throughput crop protection spraying, granular fertilizer or seed broadcasting, and prescription variable-rate application across large fields.
Yes, Robotix Market ships the XAG P150 Standard 14KW 4B4C Kit worldwide. The product is covered by the manufacturer's warranty; contact us for terms applicable in your region.
Contact Robotix Market via our website or submit a quote request — our team will provide pricing, availability, configuration details, and international shipping information for the XAG P150 Standard 14KW 4B4C Kit.
XAG P150 Standard Agricultural Drone 14KW 4B4C Kit
- Обычная цена
- Rs. 3,341,800.00
