- 7 kg payload with 500 mm reach Four-axis SCARA configuration with a compact 500 mm working radius, sized for handling, sorting, assembly, and gluing tasks in space-constrained cells.
- Dual-support structure Delivers larger load capacity, high rigidity, and low vibration so motion stays smooth and accurate even at higher speeds.
- Precision repeatability Rated at ±0.02 mm on J1 and J2, ±0.01 mm on J3, and ±0.01° on J4 for consistent placement in precision manufacturing.
- Modular series design The SA7A platform's modular architecture adapts to more automation scenarios while reducing maintenance costs.
- S series control cabinet and flexible programming Pairs with SIASUN's new-generation S series controller, supports multiple programming and teaching methods, and provides abundant user cables for expansion.
- Lightweight, low-height body A lighter main body and lower overall height make installation simple and ease space constraints on busy production lines.
Описание

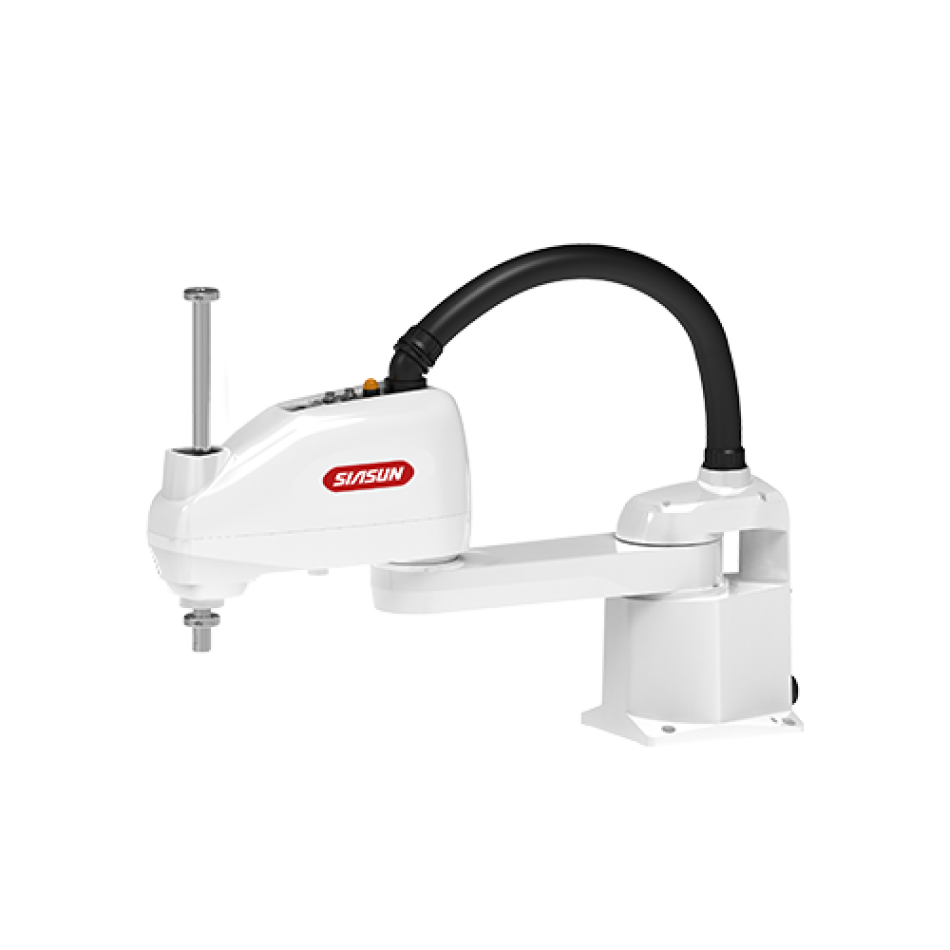

The SIASUN SA7A-7/0.50 is the most compact member of SIASUN's new-generation SA7A SCARA series, combining a 7 kg payload with a 500 mm working radius across four axes. Built on all-new proprietary core components and a dual-support structure, the arm delivers enhanced load capacity, higher precision, faster speed, greater rigidity, and reduced vibration, with repeatability rated at ±0.02 mm on joints J1 and J2, ±0.01 mm on J3, and ±0.01° on J4. The series' modular design lets the platform cover more automation scenarios while keeping maintenance costs low.
The SA7A-7/0.50 is aimed at handling, sorting, assembly, and gluing tasks, with primary application industries spanning 3C electronics, lithium battery, photovoltaic, and automotive electronics production. It runs on SIASUN's new-generation S series control cabinet, supports multiple programming and teaching methods, and ships with abundant user cables for expandability. A lightweight, compact body and lower overall height make deployment convenient and reduce space constraints in tight workcells. The robot carries an IP20 protection rating and is supplied on a quotation basis, with configuration confirmed to your project requirements.
Характеристики
Характеристики
| Brand | SIASUN |
|---|---|
| Model | SA7A-7/0.50 |
| Type | SCARA robot |
| Payload | 7 kg |
| Reach | 500 mm |
| Degrees of Freedom | 4 |
| Repeatability | J1+J2 ±0.02 mm, J3 ±0.01 mm, J4 ±0.01° |
| Protection Rating | IP20 |
| Controller | New-generation S series control cabinet |
Отрасли
Часто задаваемые вопросы
It is a four-axis SCARA robot from SIASUN's new-generation SA7A series with a 7 kg payload and 500 mm reach. All-new proprietary core components and a dual-support structure give it enhanced load capacity, higher precision, faster speed, greater rigidity, and reduced vibration.
It covers the core SCARA application areas of handling, sorting, assembly, and gluing. Its primary industries include 3C electronics, lithium battery, photovoltaic, and automotive electronics manufacturing.
All SA7A variants share the same platform, 7 kg payload, four-axis layout, and repeatability ratings. The SA7A-7/0.50 is the shortest-reach option at 500 mm, compared with 600 mm on the SA7A-7/0.60 and 700 mm on the SA7A-7/0.70, making it the best fit for the most compact workcells.
The SA7A-7/0.50 works with SIASUN's new-generation S series control cabinet and supports multiple programming and teaching methods, with abundant user cables on the main unit for expandability.
It is available through Robotix Market on a request-for-quote basis: contact our team with your requirements and we will confirm pricing, configuration, and availability. The robot is covered by the manufacturer's warranty from SIASUN, and we ship worldwide.
