- High-performance 2000 series controller Designed for easy manufacturing of diverse carrying robot types with rich basic functions and a broad optional feature set.
- 3D obstacle detection 3D vision sensors identify and detect stereoscopic obstacles, allowing the robot to stop or navigate around them based on operator configuration.
- ±5 mm positioning accuracy Multiple navigation methods deliver ±5 mm / ±1° accuracy, meeting high-precision docking requirements for industrial material handling.
- 8x power digital outputs Eight 24 V / 2 A power digital outputs (with 8-way total load ≤5 A) provide extensive actuator and peripheral control capability.
- 6+ Gigabit Ethernet + optional industrial Wi-Fi Six Gigabit Ethernet ports plus an optional industrial-grade Wi-Fi client module ensure stable and efficient fleet network connectivity.
- CE-EMC and CE-LVD certified Holds CE safety certifications for compliant deployment in international industrial and warehouse environments.
Descrizione
The SEER Robotics SRC-2000-I(S) is a high-performance general-purpose robot controller from the 2000 series, engineered to simplify the manufacturing and integration of a wide variety of autonomous carrying robots. Supporting the single-steering wheel motion model with an optional advanced motion model upgrade, the controller provides eight power digital outputs, dual CAN buses, three RS485 ports, and six-plus Gigabit Ethernet ports—an interface suite that accommodates multi-sensor safety configurations and a broad range of communication protocols. Navigation accuracy reaches ±5 mm and ±1°, supported by multiple navigation methods and an optional industrial-grade Wi-Fi client module for stable, high-throughput fleet connectivity.
A key differentiator of the SRC-2000-I(S) is its 3D vision sensor capability, which enables the controller to identify and respond to stereoscopic obstacles—choosing to stop or navigate around them based on configuration—adding a layer of spatial awareness beyond what flat LiDAR-only systems provide. USB 3.0 ports and dual audio I/O round out a rich peripheral ecosystem. CE-EMC and CE-LVD certifications confirm compliance with international safety standards, and the platform is designed to adapt readily to factory automation, warehouse transport, and autonomous mobile robot integration projects of varying complexity.
Caratteristiche
Specifiche
| Brand | SEER Robotics |
|---|---|
| Model | SRC-2000-I(S) |
| Weight | 1.41 kg |
| Navigation Accuracy | ±5 mm, ±1° |
| Maximum Driving Speed | ≤2 m/s |
| Working Voltage | 24 V |
| Power Digital Outputs | 8-way (24 V / 2 A each; total ≤5 A) |
| CAN Interfaces | 2-way |
| RS485 Ports | 3-way |
| Ethernet | 6+1-way Gbps (1 port for extended Wi-Fi client) |
| Wi-Fi | Dual-band 2.4G/5G 802.11ac 1T1X |
| USB | 4x USB 3.0 |
| Operating Temperature | 0°C to 50°C |
| Certifications | CE-EMC, CE-LVD |
Settori industriali
Domande frequenti
The SRC-2000-I(S) is a general-purpose 2000-series robot controller for autonomous carrying robots used in factory automation, warehouse transport, industrial logistics, and AMR fleet deployments requiring multi-sensor safety and high-precision navigation.
The SRC-2000-I(S) delivers ±5 mm navigation accuracy, 3D stereoscopic obstacle detection, eight power digital outputs, dual CAN and three RS485 buses, six-plus Gigabit Ethernet ports with optional industrial Wi-Fi, and support for multiple motion models.
It is suited to warehouses, logistics and distribution centers, industrial manufacturing facilities, and organizations deploying autonomous mobile robot fleets for carrying and material transport tasks.
Yes, Robotix Market ships the SEER Robotics SRC-2000-I(S) worldwide. The product is covered by the manufacturer's warranty as provided by SEER Robotics.
Contact Robotix Market through the website's quote or inquiry form to discuss configuration requirements, pricing, compatibility, lead time, and shipping for the SRC-2000-I(S).

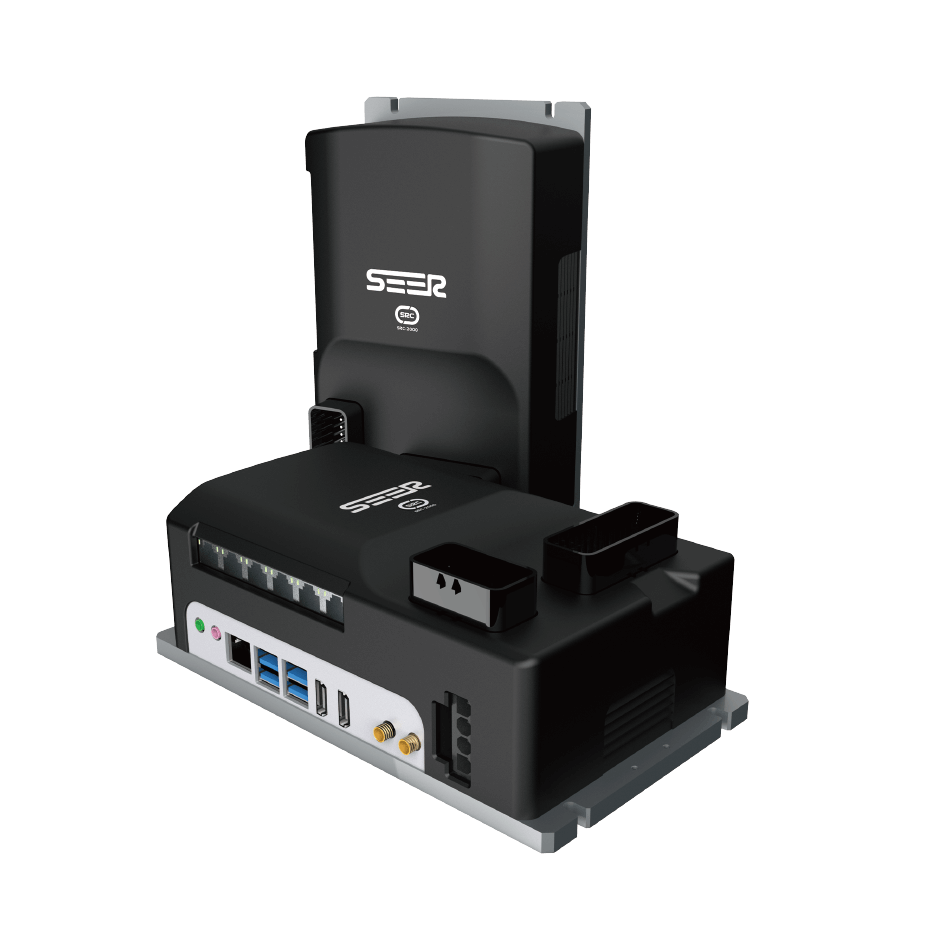

SEER Robotics SRC-2000-I(S) General-Purpose Robot Controller
